Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port

Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port

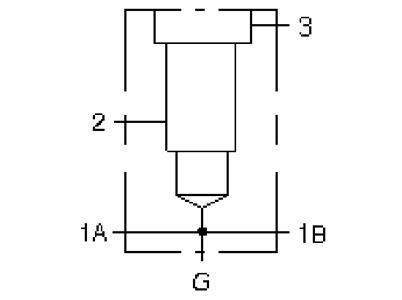

Port Designators
Modifiers Ports
KJ6, /S Ports 1 & 2: 1 1/2" Code 62; Port 3: SAE 6; Gage Port: 1/4" NPTF;
KJ6/M, /T Ports 1 & 2: 1 1/2" Code 62; Port 3: 1/4" BSPP; Gage Port: 1/4" BSPP;
Parameter
Body Type Line mount
Interface 1.50 SAE C62
Body Features Through port 1 with gauge port

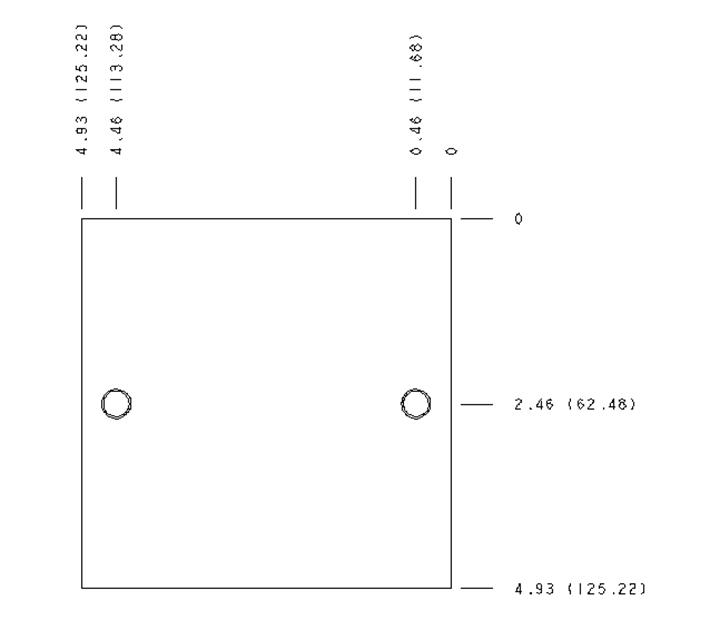

Mounting Hole Thread .375-16 UNC - 2B in.
Mounting Hole Thread M10x1.5 - 6H (metric models)
Mounting Hole Depth .62 in.
Mounting Hole Quantity 2
Open Cavities 1
Cavity T-19AU
Port Size 1 1/2" Code 62
Model Weight 13.15 lb.

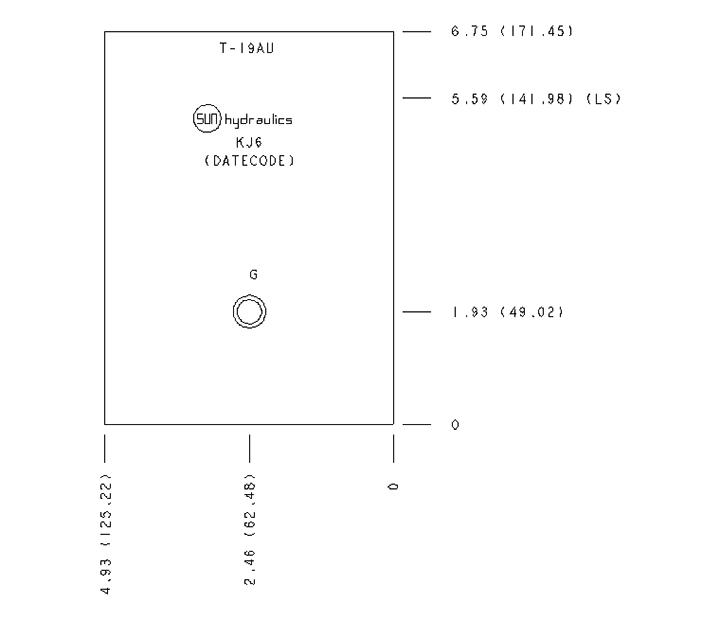

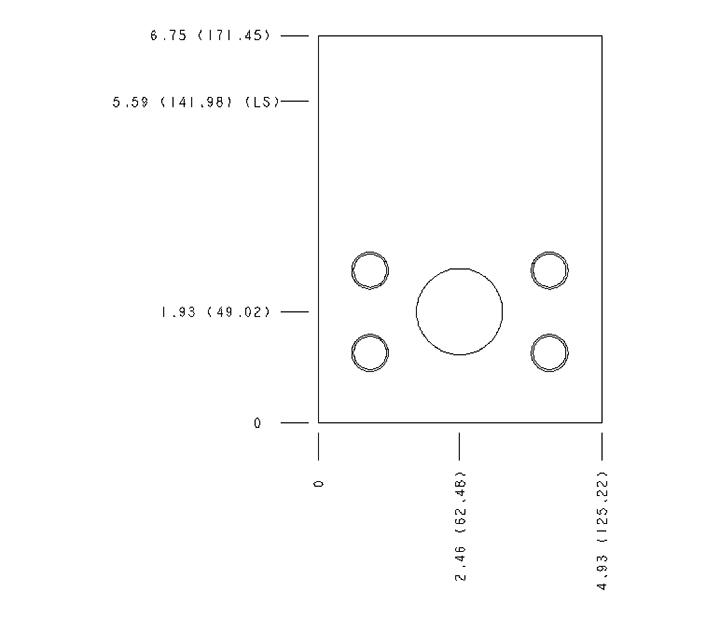

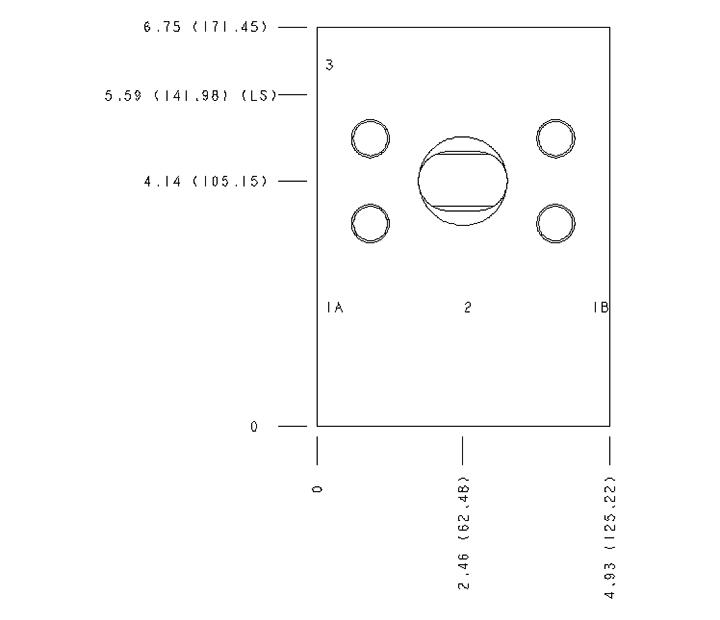

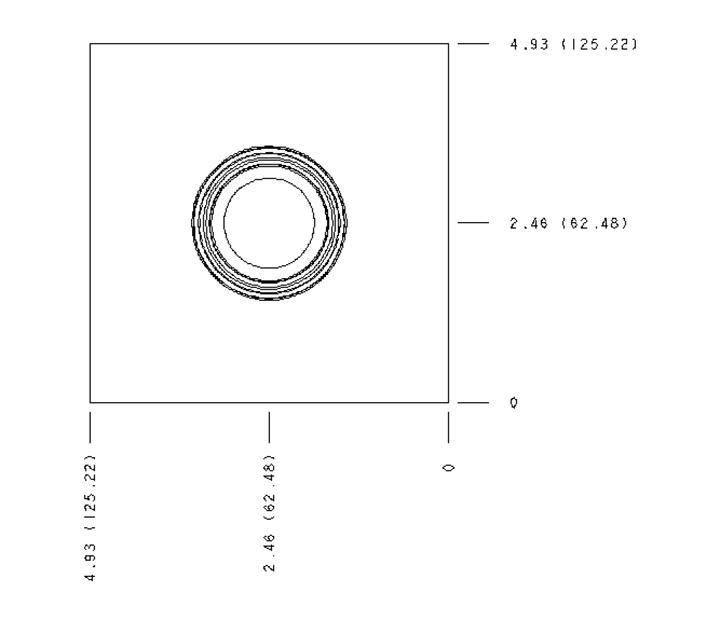

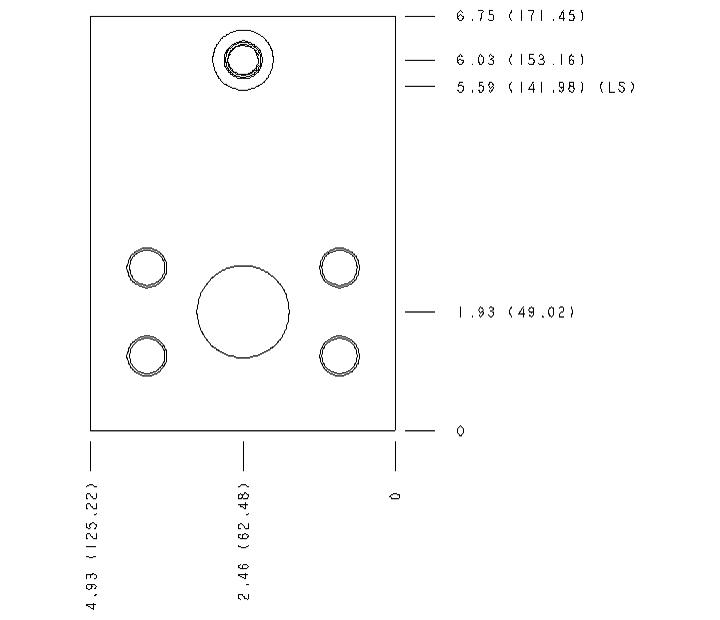

Face
Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port
Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port Hydraulic Manifold - Logic Element, Through Port 1 with Gauge Port
