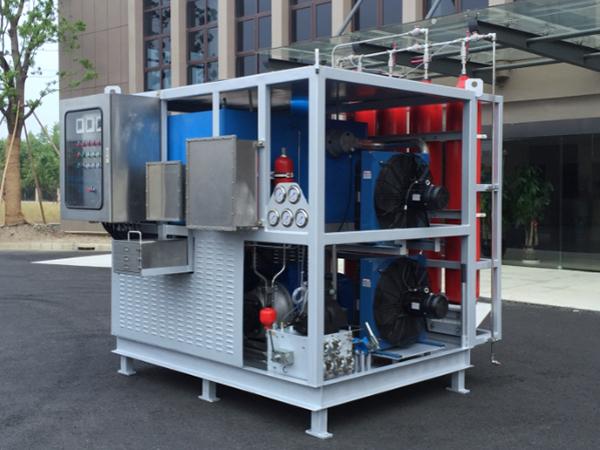

Heavy Duty Crane Hydraulic Lift System

Hydraulic lift system installed in heavy duty crane helps the crane hoist and transfer heavy loads. Successsun can provide special crane hydraulic lift system which is helpful for ensuring the stability and safety of the crane.

Hoisting and moving are the most frequent motion for crane, heavy duty crane hydraulic lift system can make the hoisting and moving stable and safe. Successsun know that hydraulic lift system plays a critical role in crane operation, so we try our best to avoid problems may occur. The common problem is the leakage of hydraulic oil, which usually results from the manufacturing and assembly error of hydraulic components as well as the surface friction among hydraulic components, this causes oil to flow out through these cracks. In order to avoid the leakage of oil, we have been trying on combination of components many times and finally found a most compatible combination, which reduces the friction among hydraulic components. When accepting hydraulic components and after manufacturing of the final hydraulic system, we insist on measuring many times in order to avoid the error.

• Total power: 180kW
• Oil tank volume: 3000L
• Total flow: 800LPM
• levels of protection: IP68
• Working pressure: 210bar

• ABB Motor
• KTR Coupling
• Rexroth Plunger pump
• SUN Cartridge valves
• Rexroth Proportional valves
• STAUFF Hydraulic accessories
• Wika Pressure gauge
