Hydraulic Manifold - Through Port with Gauge Port

Hydraulic Manifold - Through Port with Gauge Port

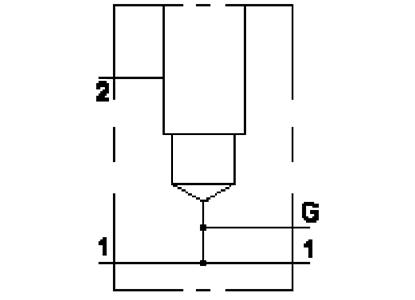

Port Designators
Modifiers Ports
LED Ports 1 & 2: 3/4" NPTF; Gage Port: 1/4" NPTF;
Parameter
Body Type Line mount
Interface None
Body Features Through port with gauge port
Mounting Hole Thread .375-16 UNC - 2B in.
Mounting Hole Depth .62 in.
Mounting Hole Quantity 2
Open Cavities 1
Cavity T-18A
Port Size 3/4" NPTF
Model Weight 5.08 lb.

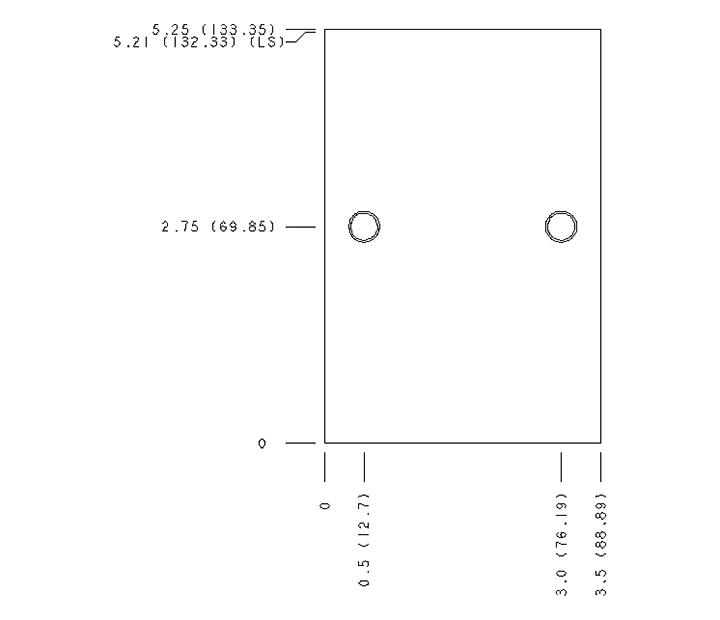

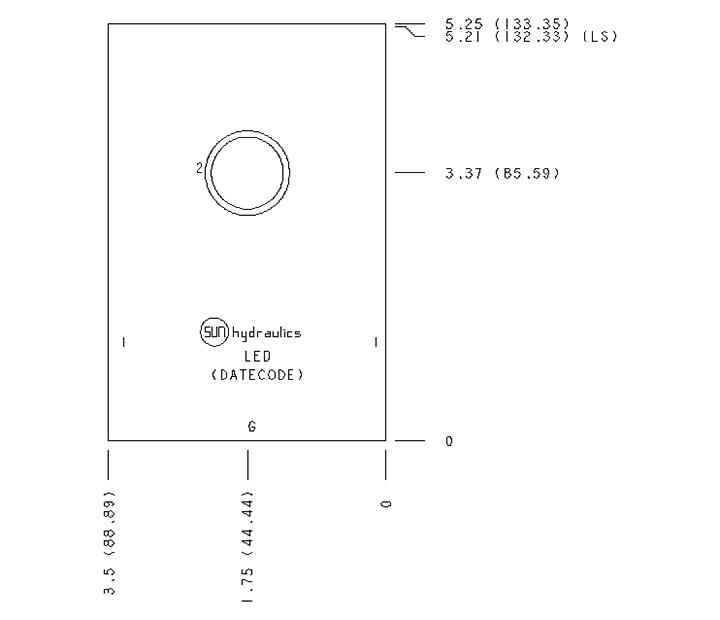

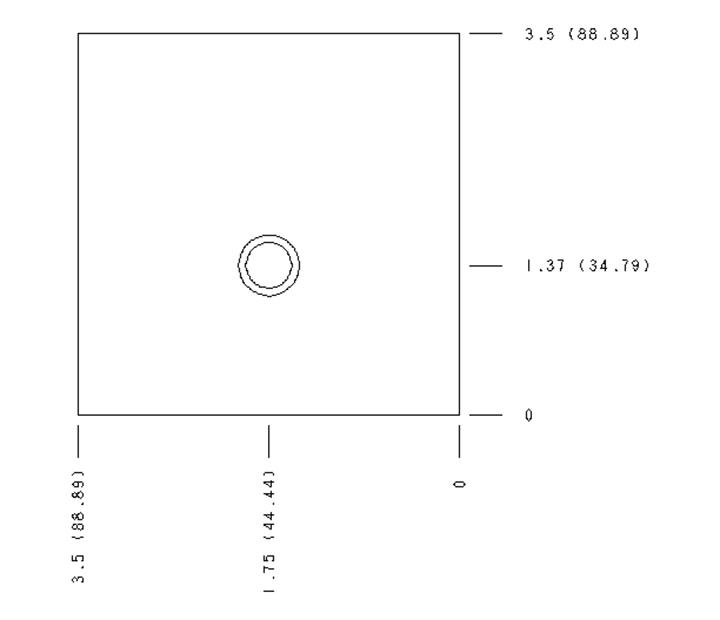

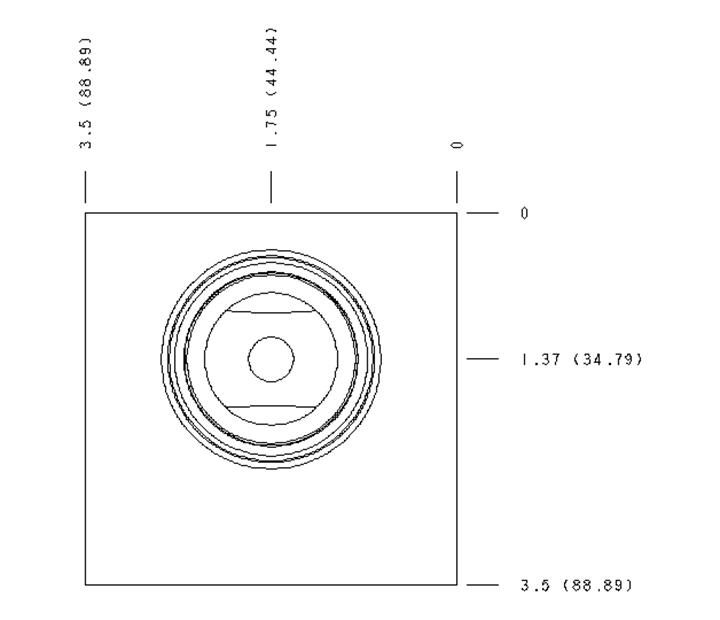

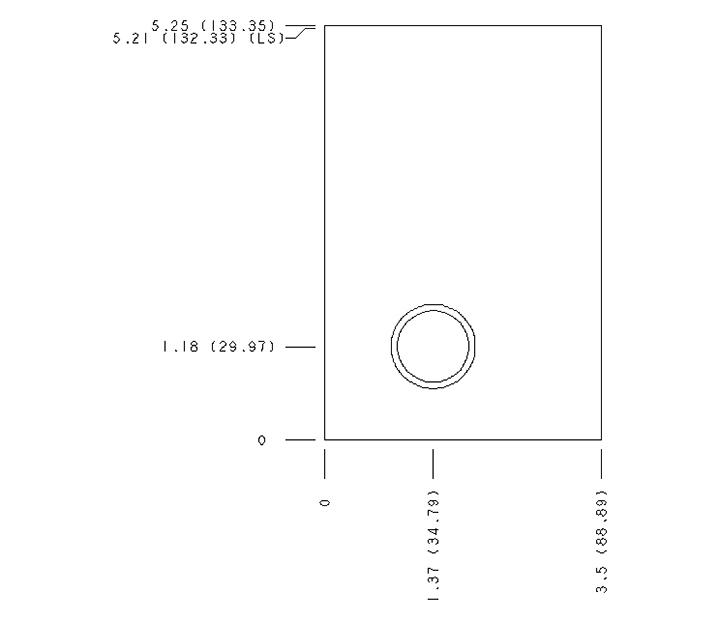

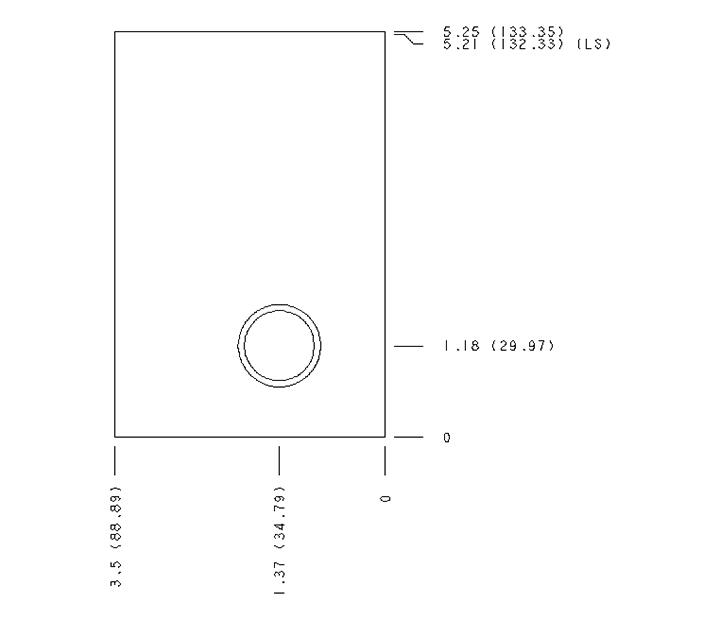

Face
Hydraulic Manifold - Through Port with Gauge Port
Hydraulic Manifold - Through Port with Gauge Port Hydraulic Manifold - Through Port with Gauge Port Hydraulic Manifold - Through Port with Gauge Port Hydraulic Manifold - Through Port with Gauge Port Hydraulic Manifold - Through Port with Gauge Port Hydraulic Manifold - Through Port with Gauge Port
