No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10

No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10
Parameter
Body Type Sandwich
Interface ISO 08

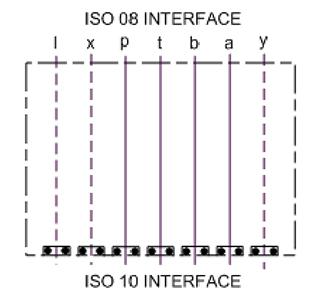

Body Features Adaptor from ISO 08 to ISO 10
Mounting Hole Diameter .81 in.
Mounting Hole Thread .500-13 UNC - 2B in.
Mounting Hole Thread M12x1.75 - 6H (metric models)
Mounting Hole Depth Through
Open Cavities 0
Model Weight 14.83 lb.

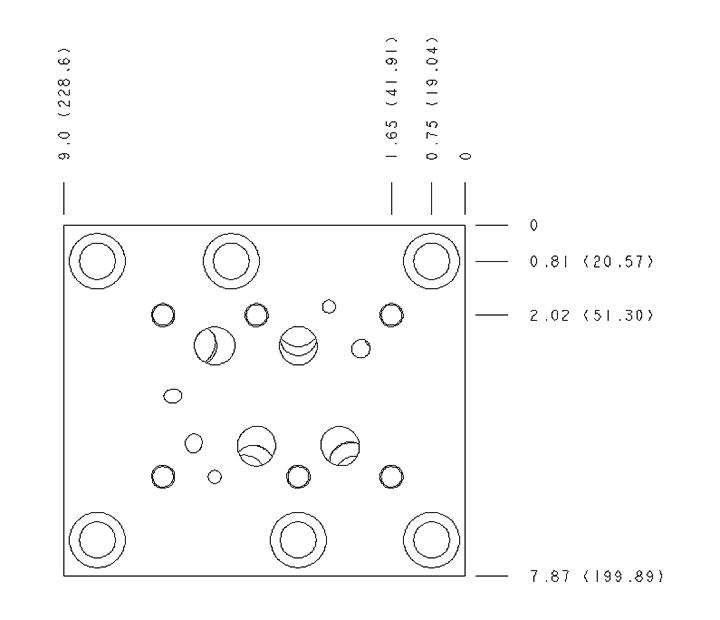

Face
No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10
No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10 No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10 No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10 No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10 No-Cavity Hydraulic Manifold - ISO 08: Adaptor From ISO 08 to ISO 10
