Hydraulic Manifold - Load Control, Danfoss OMT: Cross Pilot with Shuttle
| Modifiers | Ports |

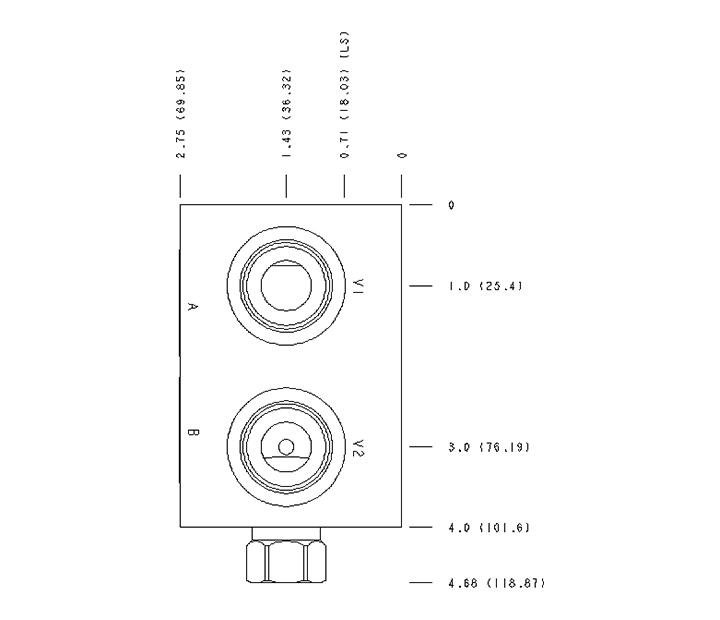

| WKY, /V | Ports V1 & V2: SAE 12; Port S: SAE 4; |
| Body Type | Motor mount |
| Interface | Danfoss OMT |

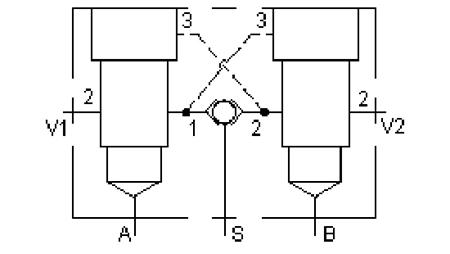

| Body Features | Cross pilot with shuttle |
| Open Cavities | 2 |
| Cavity | T-2A |
| Port Size | SAE 12 |
| Model Weight | 2.60 lb. |
Inquiry
