Flow Divider / Hydraulic Manifold - Parallel Cavities

Flow Divider / Hydraulic Manifold - Parallel Cavities

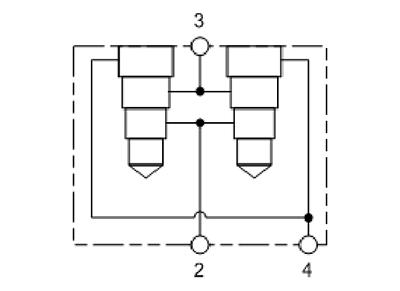

Port Designators
Modifiers Ports
VTP, /M Ports 2 & 4: 1 1/2" Code 62; Port 3: 2" Code 62;
Parameter
Body Type Line mount
Interface None
Body Features Parallel cavities

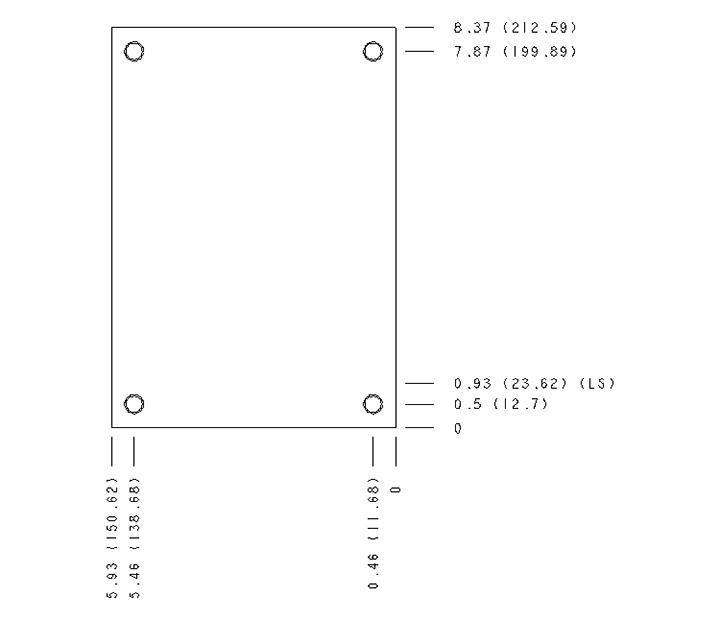

Mounting Hole Thread .375-16 UNC - 2B in.
Mounting Hole Thread M10x1.5 - 6H (metric models)
Mounting Hole Depth .62 in.
Mounting Hole Quantity 4
Open Cavities 2
Cavity T-34A
Port Size 1 1/2" Code 62
Model Weight 23.50 lb.
Face
Flow Divider / Hydraulic Manifold - Parallel Cavities
Flow Divider / Hydraulic Manifold - Parallel Cavities Flow Divider / Hydraulic Manifold - Parallel Cavities Flow Divider / Hydraulic Manifold - Parallel Cavities Flow Divider / Hydraulic Manifold - Parallel Cavities Flow Divider / Hydraulic Manifold - Parallel Cavities
