Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils

Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils

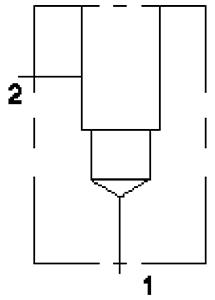

Port Designators
Modifiers Ports
A3C, /S All Ports: 1/2" NPTF;
Parameter
Body Type Line mount
Body Features Ninety degree, accepts standard and weatherized coils
Mounting Hole Diameter .34 in.
Mounting Hole Depth Through
Mounting Hole Quantity 1
Open Cavities 1
Cavity T-13A
Port Size 1/2" NPTF
Model Weight 1.17 lb.

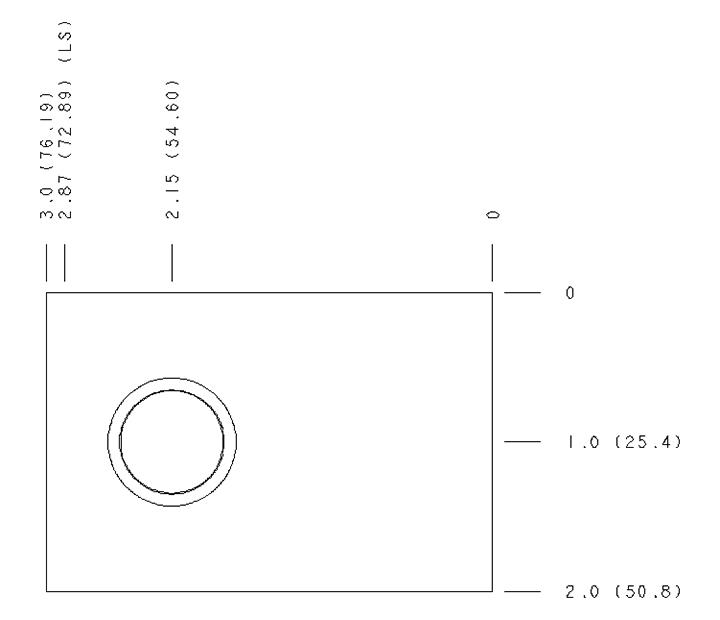

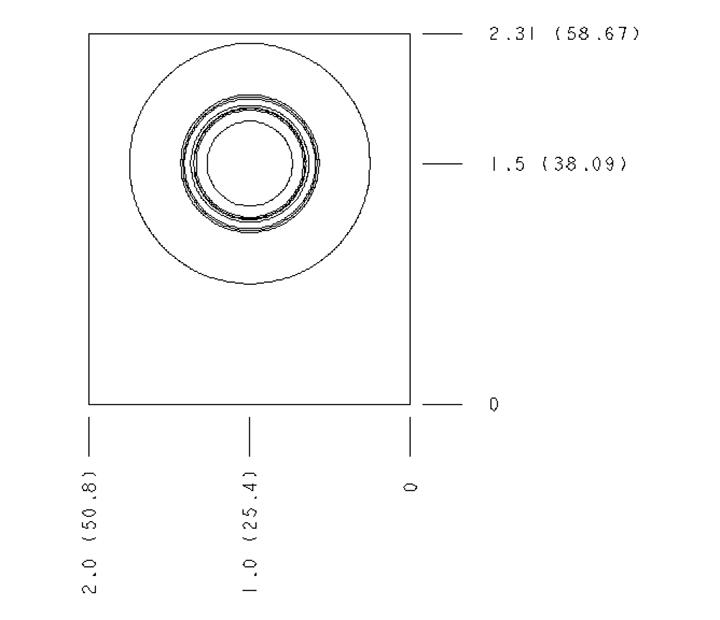

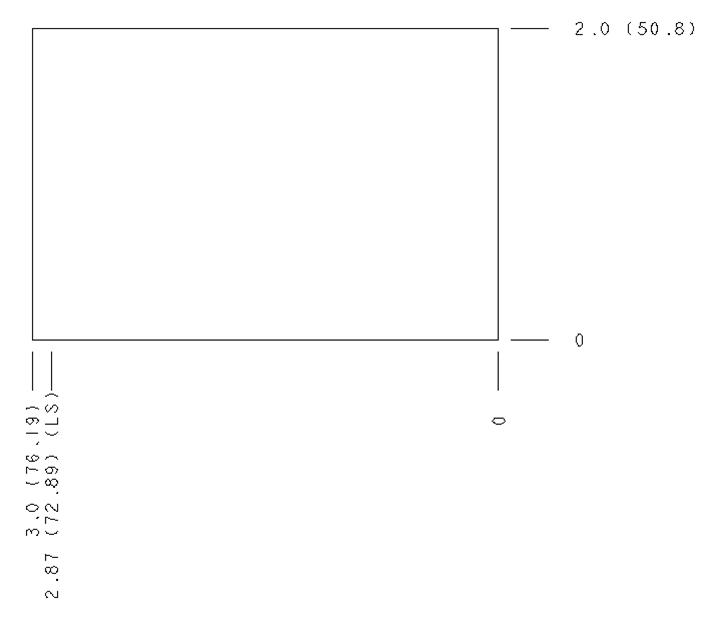

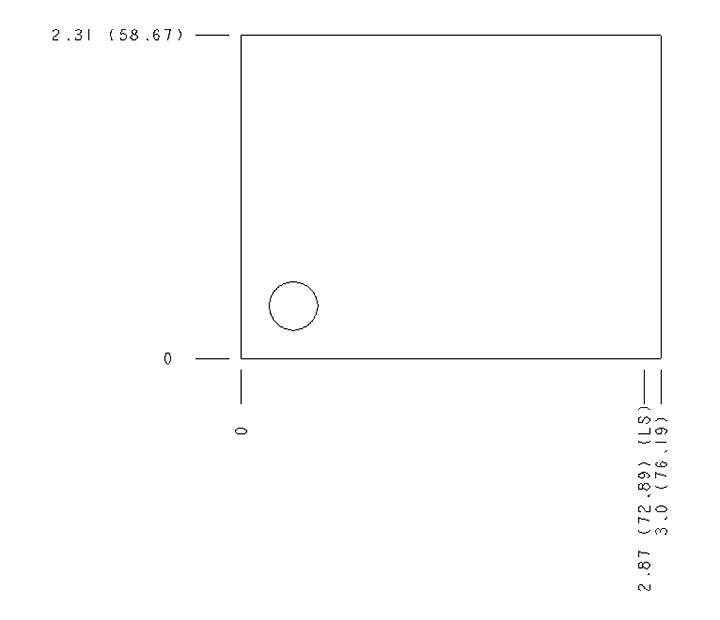

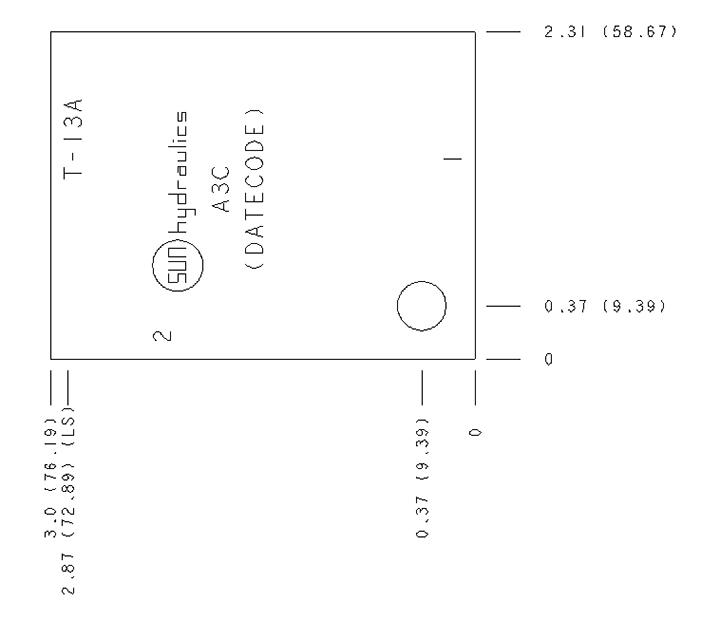

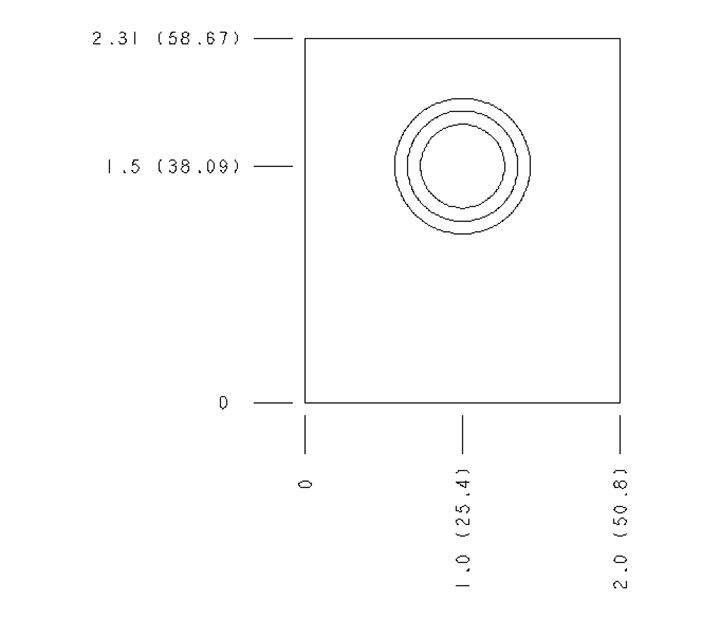

Face
Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils
Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils Hydraulic Manifold - Solenoid, 90 Degree, Accepts Standard and Weatherized Coils
