Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities

Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities

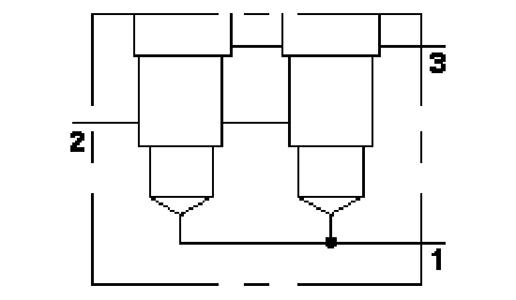

Port Designators
Modifiers Ports
YZC Ports 1 & 2: SAE 12; Port 3: SAE 6;
Parameter
Body Type Line mount
Interface None
Body Features Parallel cavities

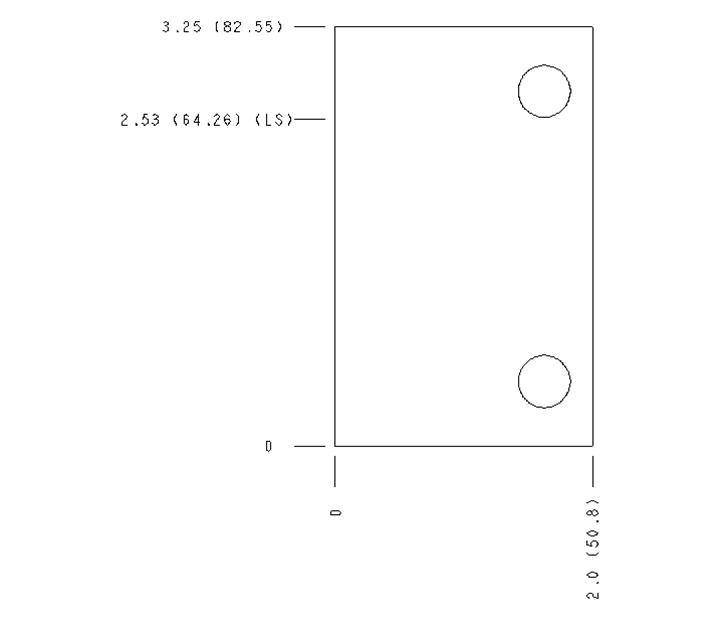

Mounting Hole Diameter .41 in.
Mounting Hole Depth Through
Mounting Hole Quantity 2

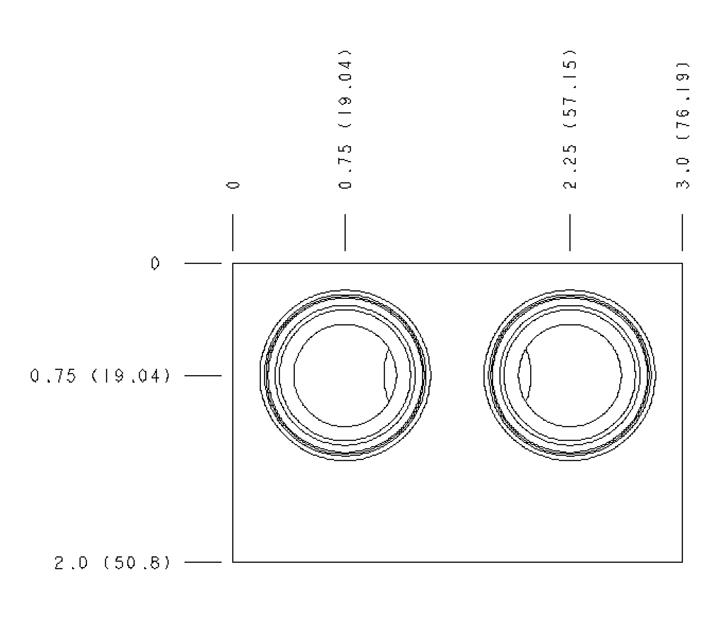

Open Cavities 2
Cavity T-2A
Port Size SAE 12
Model Weight 1.28 lb.

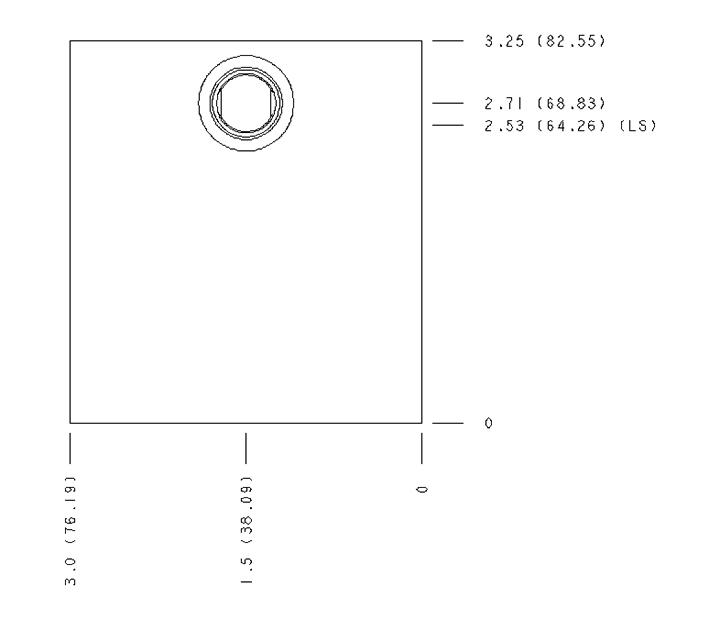

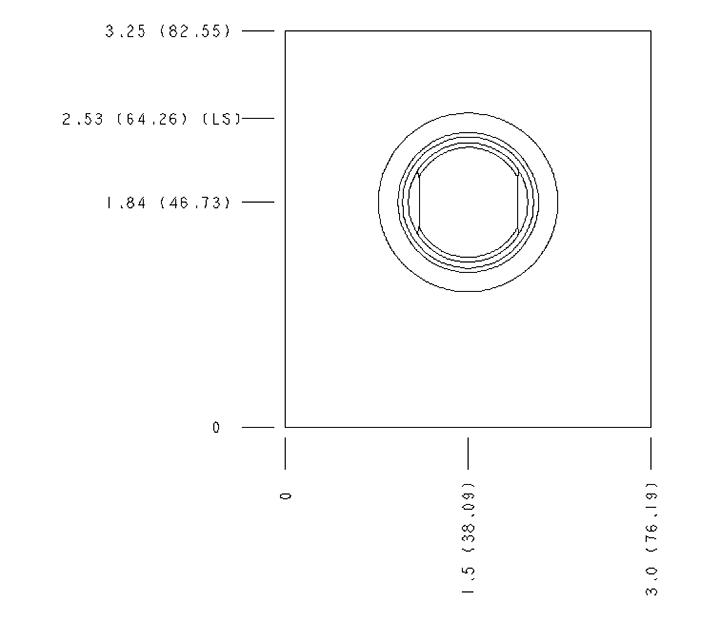

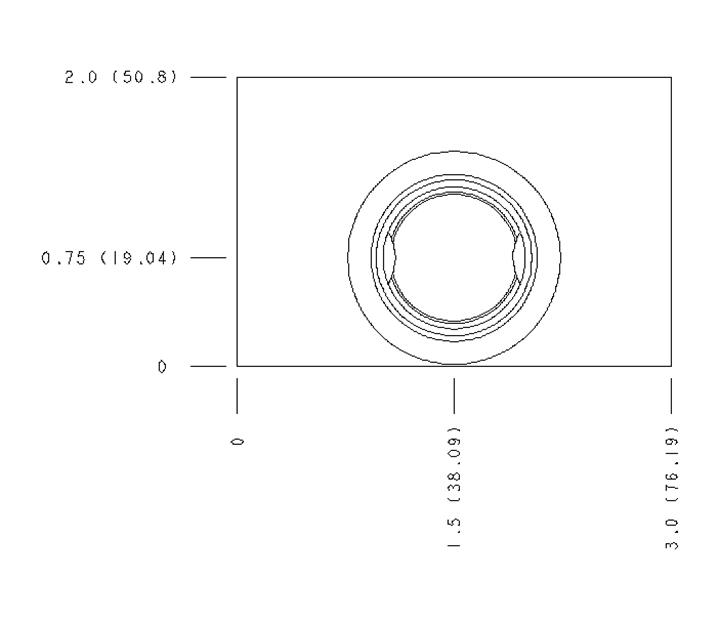

Face
Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities
Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities Hydraulic Manifold - Vented Pilot-to-Open Check, Parallel Cavities
