Flow Control Manifold - Meter In with Restrictive Compensator
| Modifiers | Ports |
| U4U, /S, /V, /Y | Ports IN & OUT: SAE 8; |
| Body Type | Line mount |

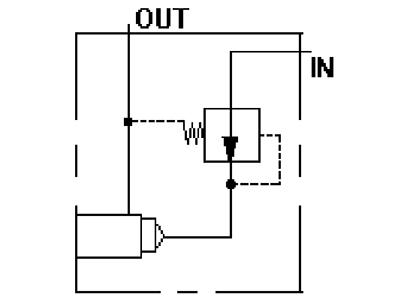

| Body Features | Meter in with restrictive compensator |
| Mounting Hole Diameter | .34 in. |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-13A |
| Port Size | SAE 8 |
| Model Weight | 1.85 lb. |
