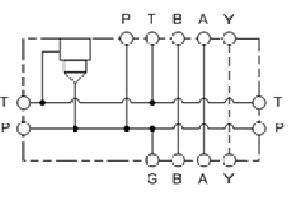

Hydraulic Bar Manifold - Air Bleed and Start-Up, 1 Station, Parallel circuit with relief cavity
| Modifiers | Ports |
| VME | Ports A, B, P: SAE 12; Port T: SAE 16; Port Y: SAE 6; Gage Port: SAE 4; |
| Body Type | Bar Manifold |
| Interface | ISO 07 |
| Body Features | 1 Station, Parallel circuit with relief cavity |
| Mounting Hole Thread | .375-16 UNC - 2B in. |
| Mounting Hole Depth | .75 in. |
| Mounting Hole Quantity | 4 |
| Open Cavities | 1 |
| Cavity | T-3A |
| Port Size | SAE 12 |
| Model Weight | 5.95 lb. |
