  5. Relief, 5 Station, Parallel Circuit with Relief Cavity

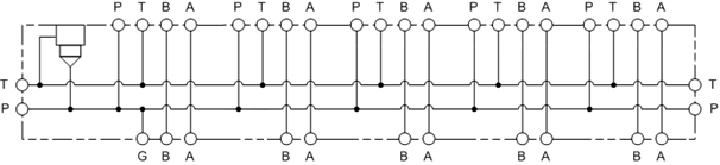

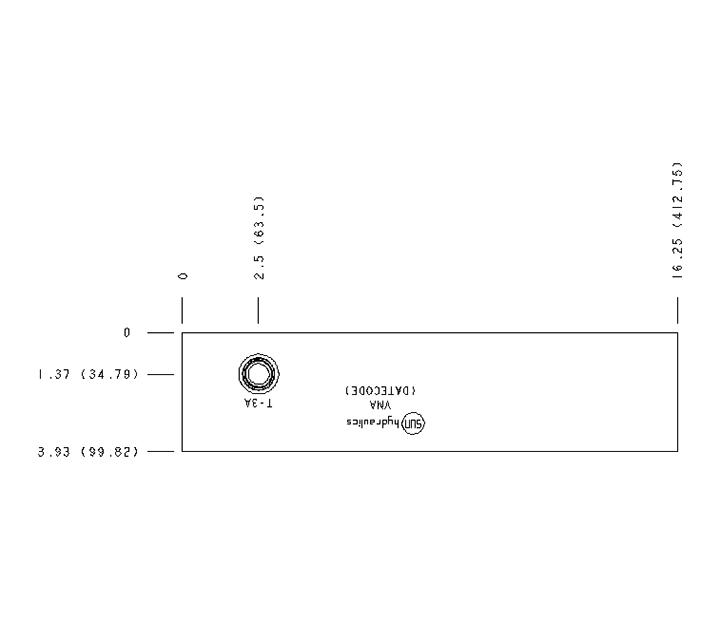

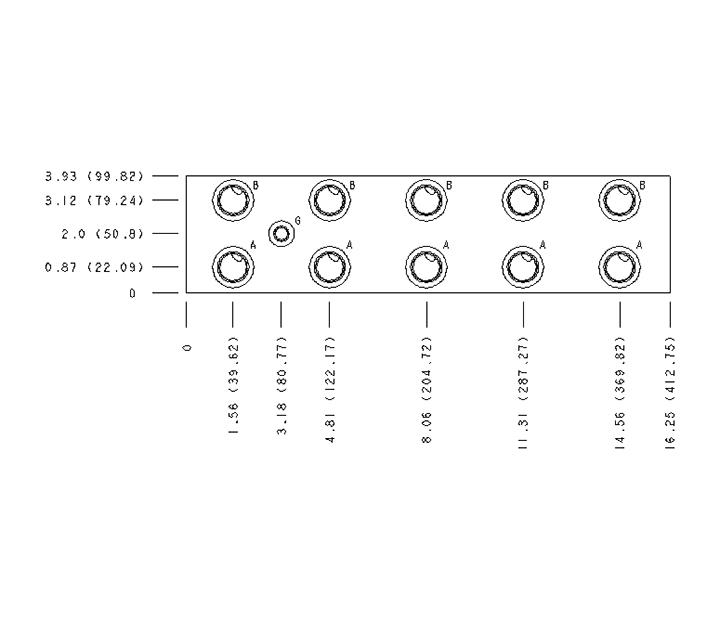

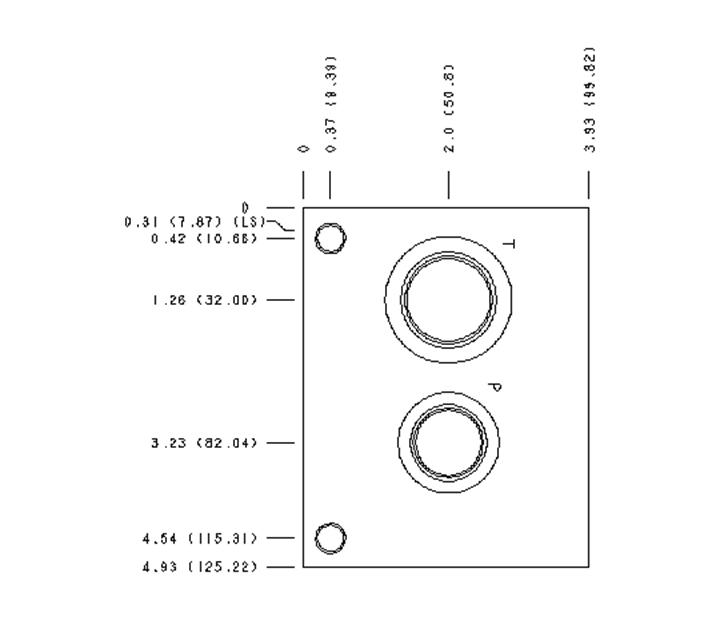

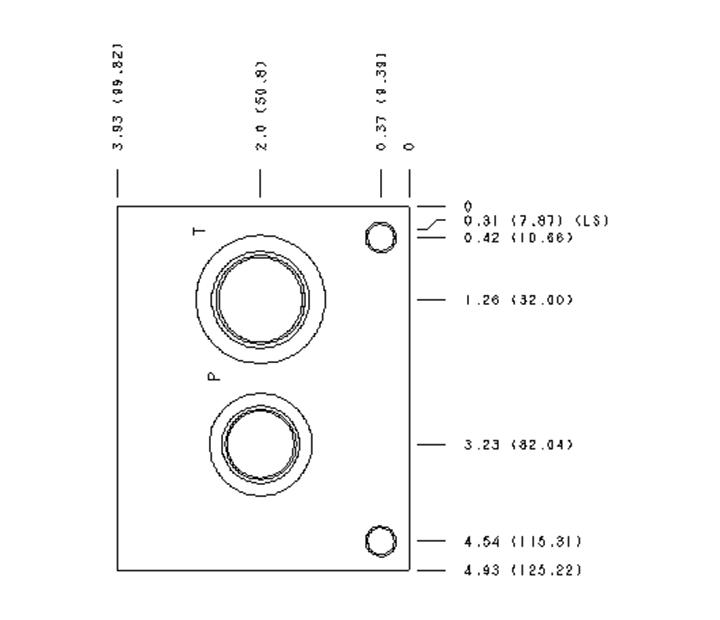

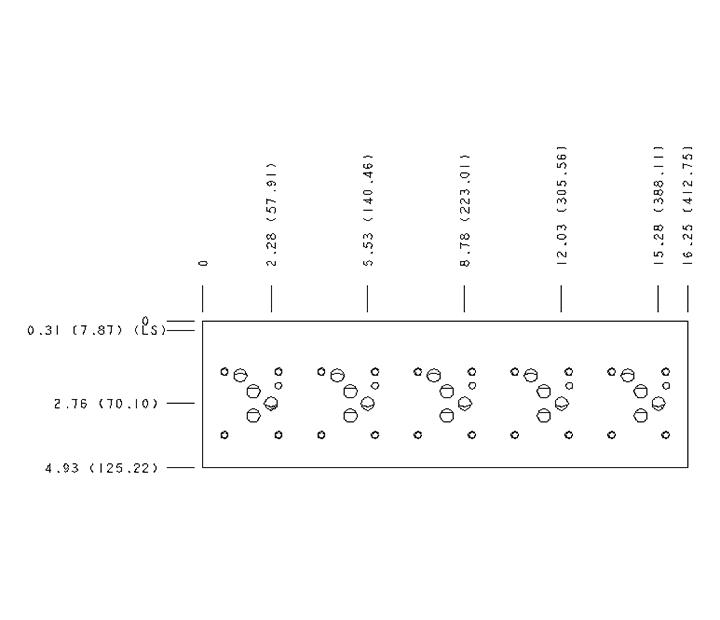

Hydraulic Bar Manifold - Relief, 5 Station, Parallel Circuit with Relief Cavity

Hydraulic Bar Manifold - Relief, 5 Station, Parallel Circuit with Relief Cavity
Port Designators
Modifiers Ports
VMA Ports A, B, P: 3/4" BSPP; Port T: 1" BSPP; Gage Port: 1/4" BSPP;
Parameter
Body Type Bar Manifold
Interface ISO 05
Body Features 5 Station, Parallel circuit with relief cavity
Mounting Hole Thread .375-16 UNC - 2B in.
Mounting Hole Depth .75 in.
Mounting Hole Quantity 4
Open Cavities 1
Cavity T-3A
Port Size 3/4" BSPP
Model Weight 25.71 lb.
