Hydraulic Manifold - Filter, On P, Side Ports

Hydraulic Manifold - Filter, On P, Side Ports
Port Designators
Modifiers Ports
X6K Ports A, B, P, T: 3/8" NPTF;
Parameter
Body Type Subplate

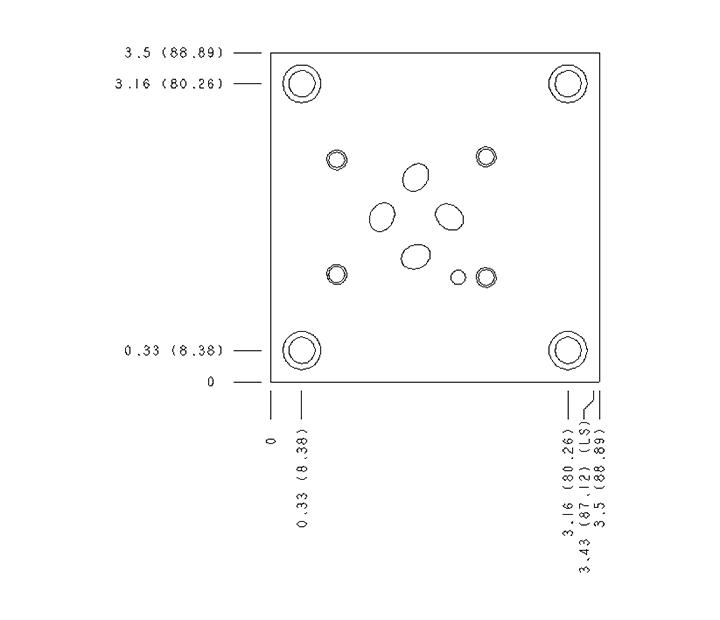

Interface ISO 03

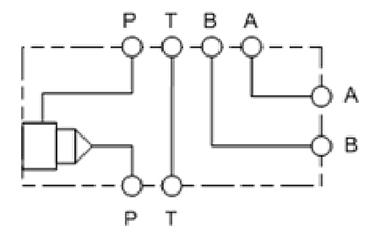

Body Features On P, side ports
Mounting Hole Diameter .28 in.
Mounting Hole Depth Through
Mounting Hole C'bore Diameter .41 in.
Mounting Hole C'bore Depth .25 in.
Mounting Hole Quantity 4
Open Cavities 1

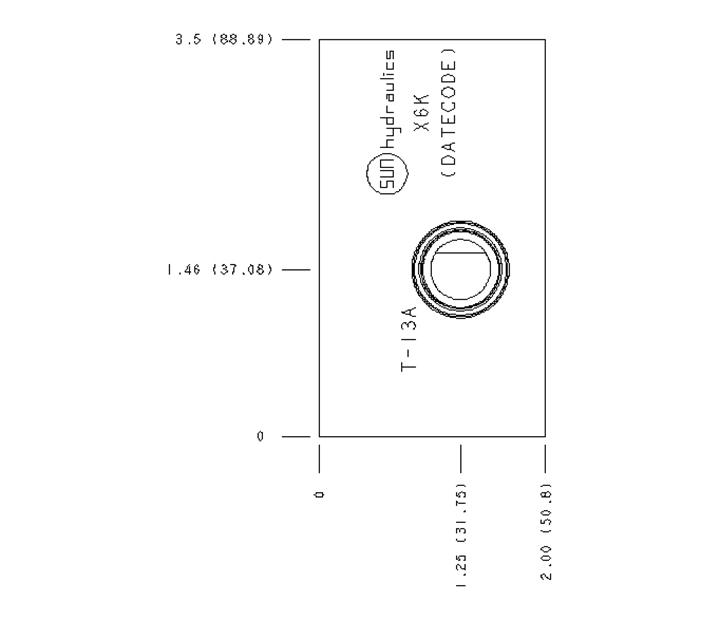

Cavity T-13A

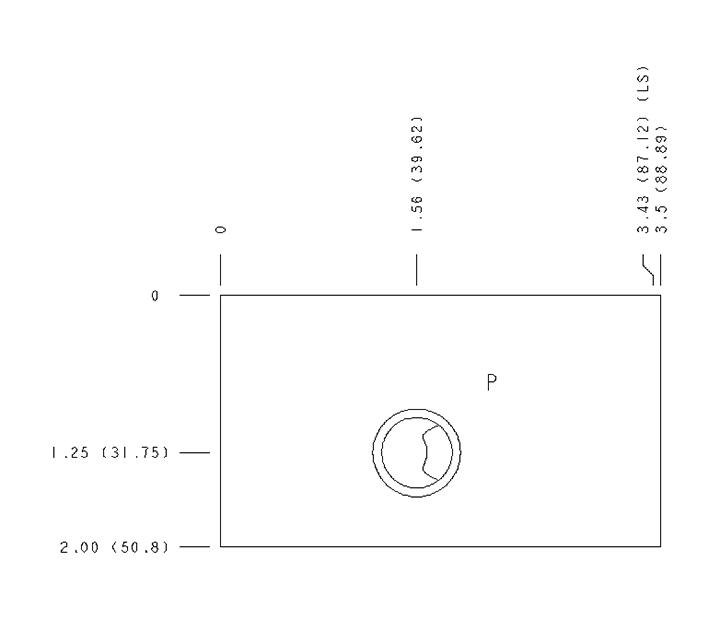

Port Size 3/8" NPTF
Model Weight 2.12 lb.

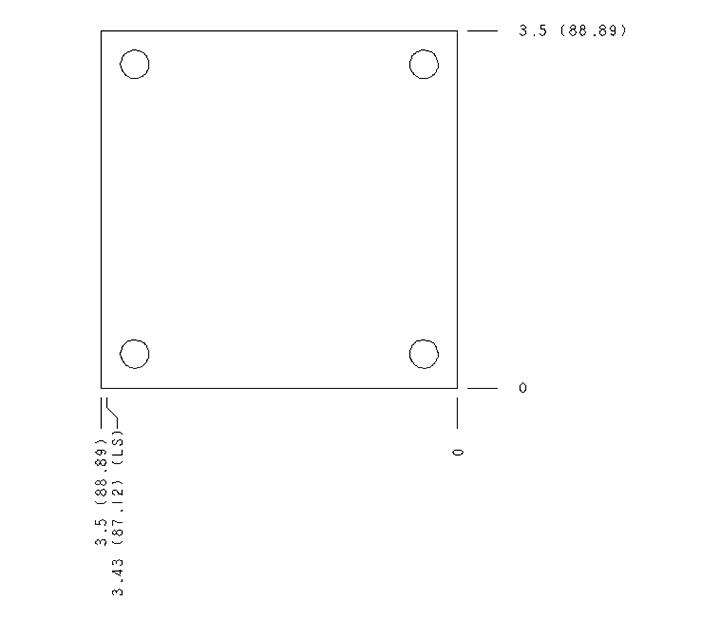

Face
Hydraulic Manifold - Filter, On P, Side Ports
Hydraulic Manifold - Filter, On P, Side Ports Hydraulic Manifold - Filter, On P, Side Ports Hydraulic Manifold - Filter, On P, Side Ports Hydraulic Manifold - Filter, On P, Side Ports
