Flow Control Manifold - On P

Flow Control Manifold - On P

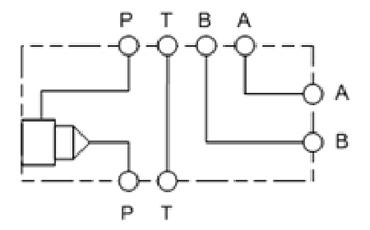

Port Designators
Modifiers Ports

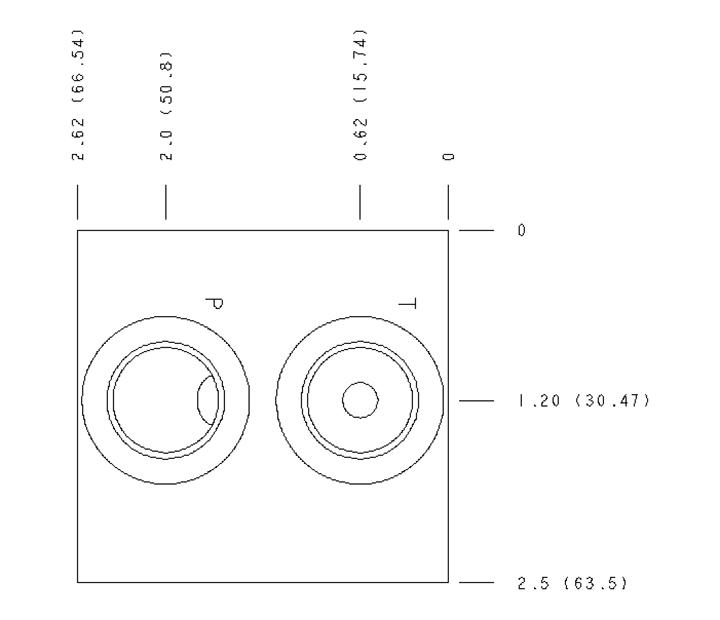

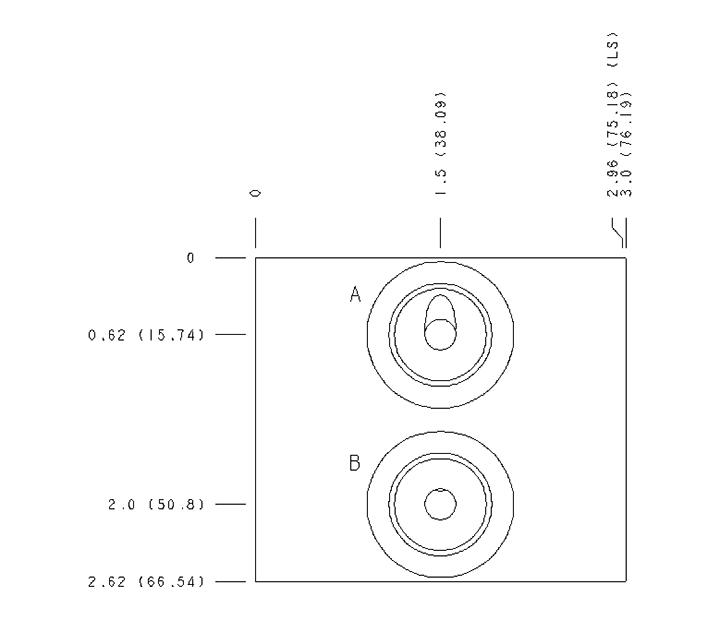

ZAX, /M Ports A, B, P, T: 1/2" BSPP;
Parameter
Body Type Subplate
Interface ISO 03
Body Features On P
Mounting Hole Diameter .34 in.
Mounting Hole Depth Through
Mounting Hole C'bore Diameter .50 in.
Mounting Hole C'bore Diameter .56 in. (metric models)
Mounting Hole C'bore Depth .38 in.
Mounting Hole C'bore Depth .38 in. (metric models)
Mounting Hole Quantity 2
Open Cavities 1

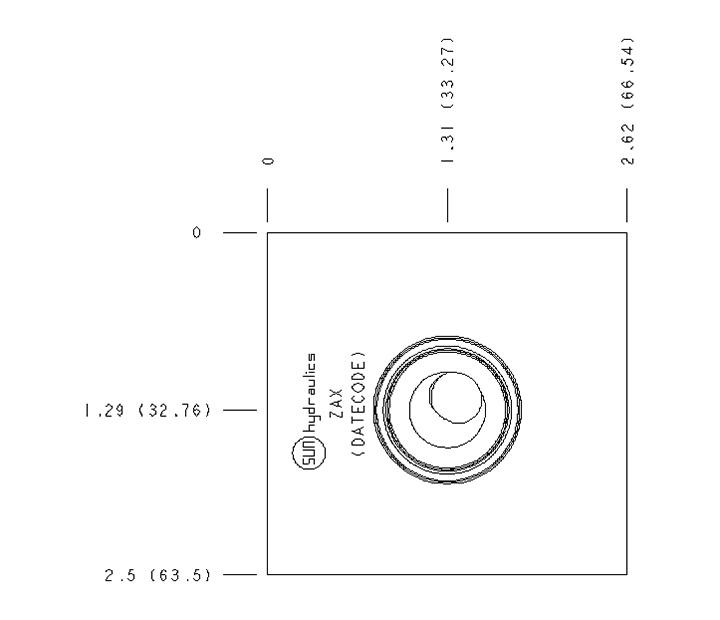

Cavity T-5A
Port Size 1/2" BSPP
Model Weight 1.56 lb.

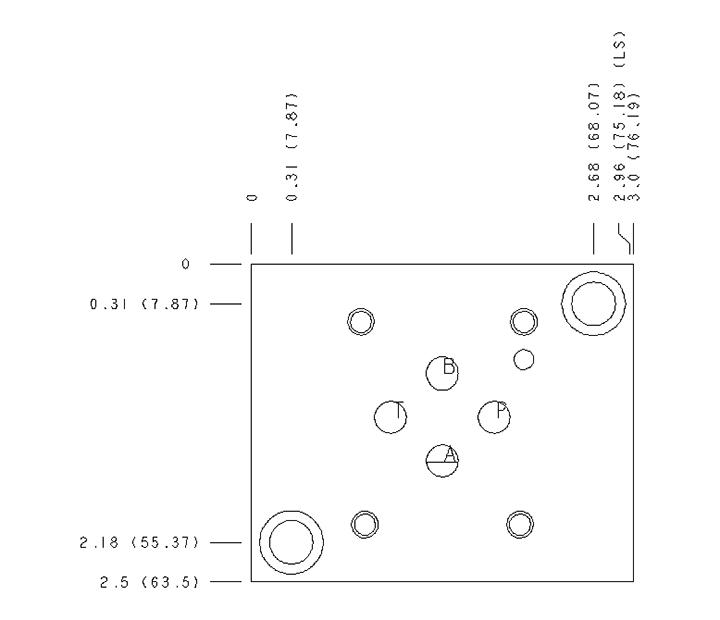

Face
Flow Control Manifold - On P
Flow Control Manifold - On P Flow Control Manifold - On P Flow Control Manifold - On P Flow Control Manifold - On P
