Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port

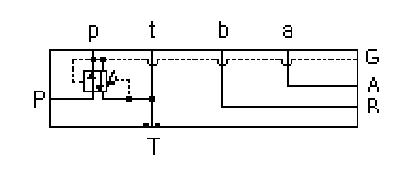

  • Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T PortReducing/Relieving on P

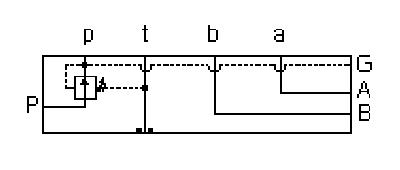

  • Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T PortReducing on P
Port Designators
Modifiers Ports
ETB, /V Ports A, B, P: 3/8" NPTF; Port T: 3/8" NPTF; Gage Port: 1/4" NPTF;
Parameter
Body Type Subplate
Interface None
Body Features On P, port 3 to T, bottom T port
Mounting Hole Diameter .28 in.
Mounting Hole Depth Through
Mounting Hole Quantity 4
Open Cavities 1
Cavity T-11A
Port Size 3/8" NPTF
Model Weight 2.08 lb.

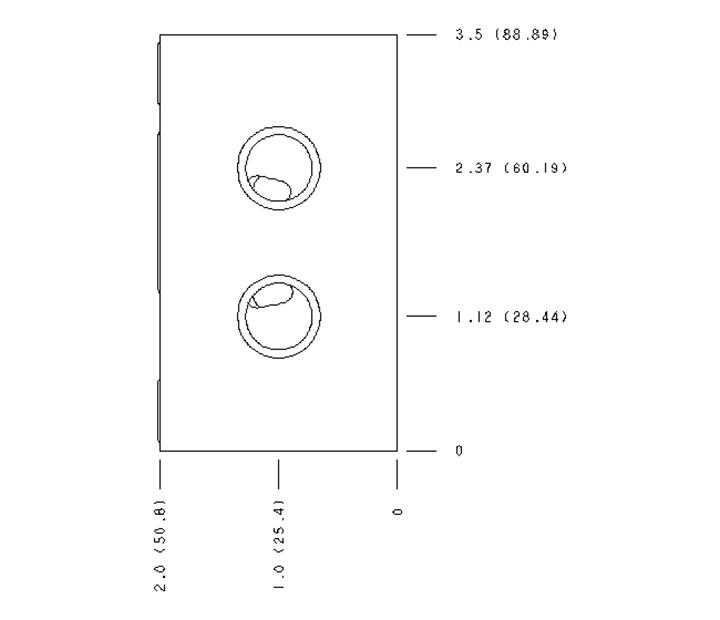

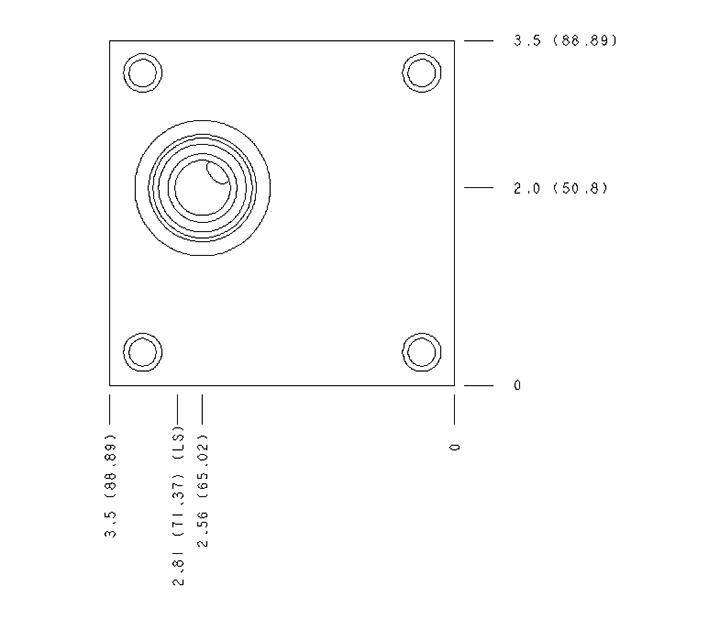

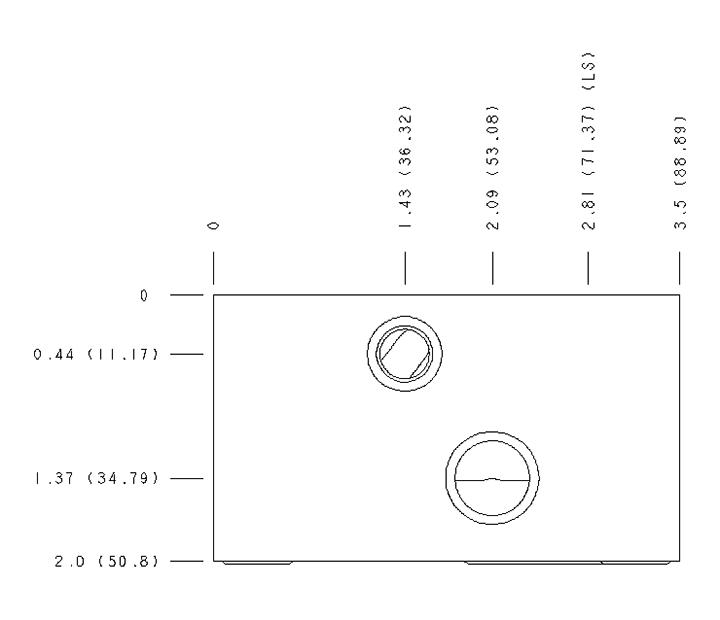

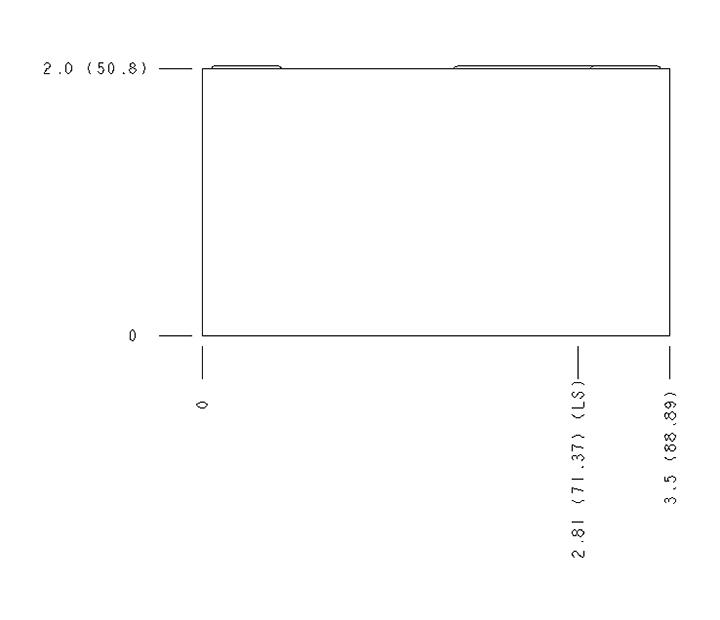

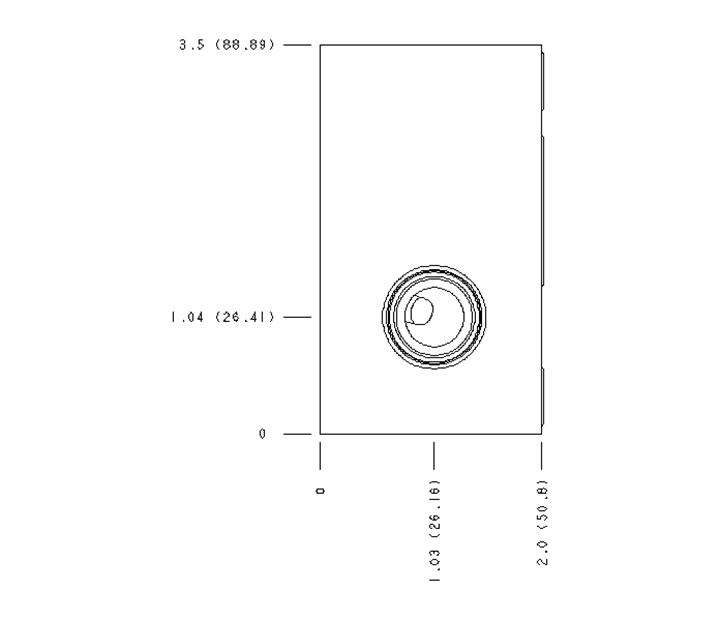

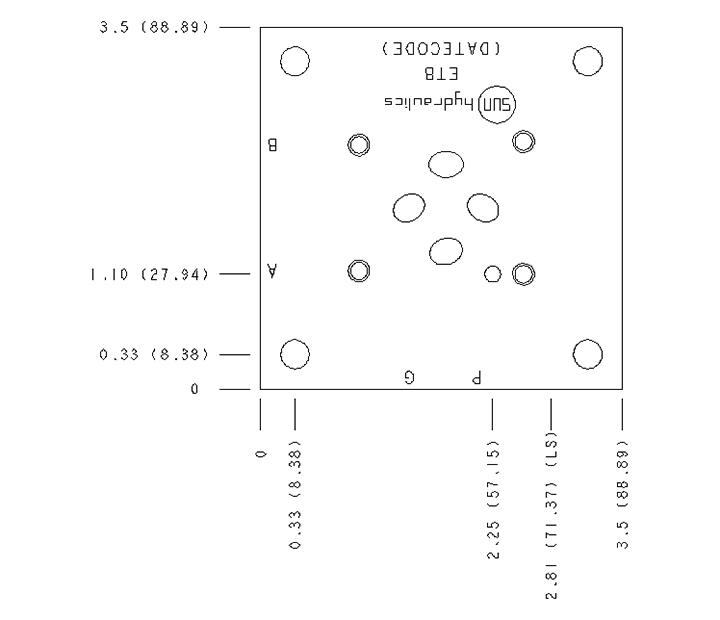

Face
Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port
Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port Hydraulic Manifold - Pressure Reducing/Relieving, On P, Port 3 to T, Bottom T Port
