Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T

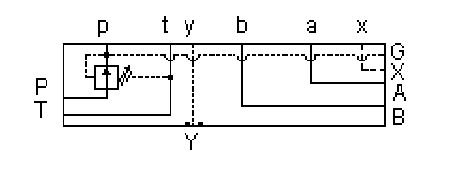

  • Hydraulic Manifold - Pressure Reducing, On P, Port 3 to TReducing/Relieving on P

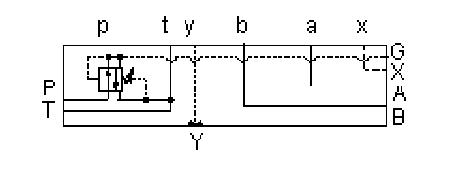

  • Hydraulic Manifold - Pressure Reducing, On P, Port 3 to TReducing on P
Port Designators
Modifiers Ports
ZMC Ports A, B, P, T: 1/2" Code 61; Ports X & Y: SAE 6; Gage Port: 1/4" NPTF;
ZMC/M Ports A, B, P, T: 1 1/2" Code 61; Ports X & Y: 1/4" BSPP; Gage Port: 1/4" BSPP;
Parameter
Body Type Subplate
Interface ISO 08
Body Features On P, port 3 to T
Mounting Hole Thread .500-13 UNC - 2B in.
Mounting Hole Thread M12x1.75 - 6H (metric models)
Mounting Hole Depth 1.00 in.
Mounting Hole Quantity 2
Open Cavities 1
Cavity T-19A
Port Size 1/2" Code 61
Model Weight 29.87 lb.

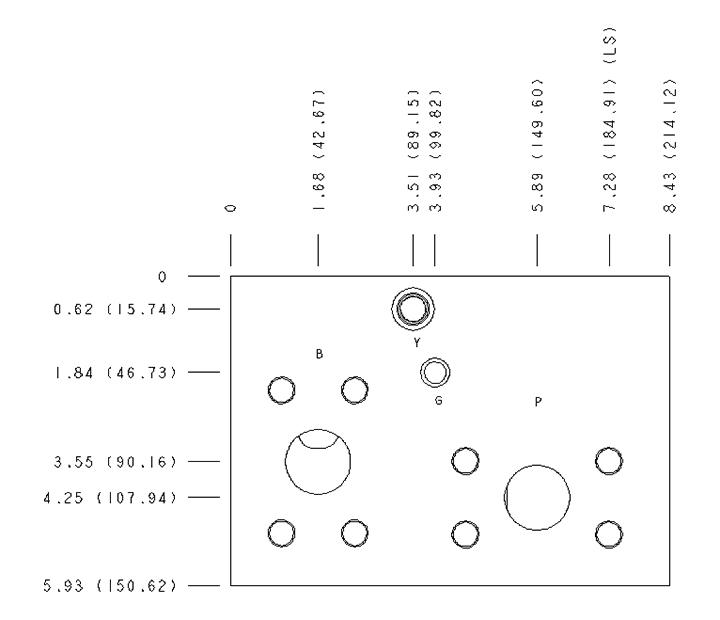

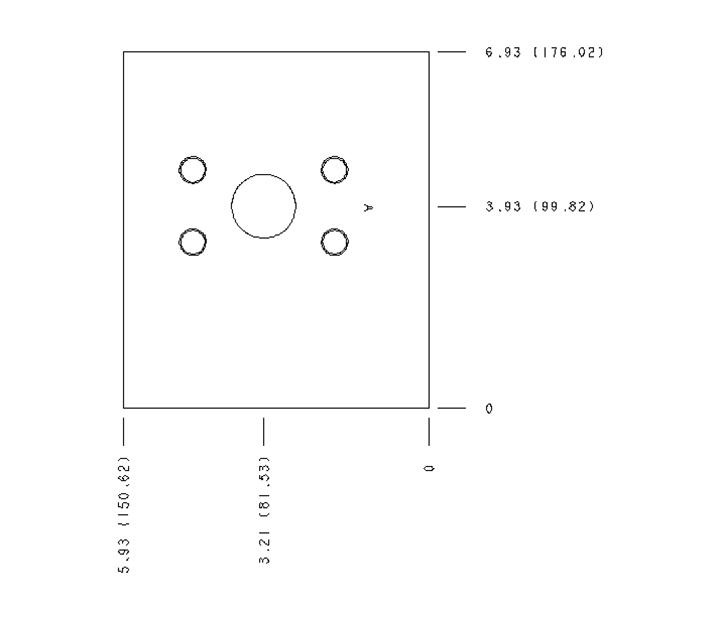

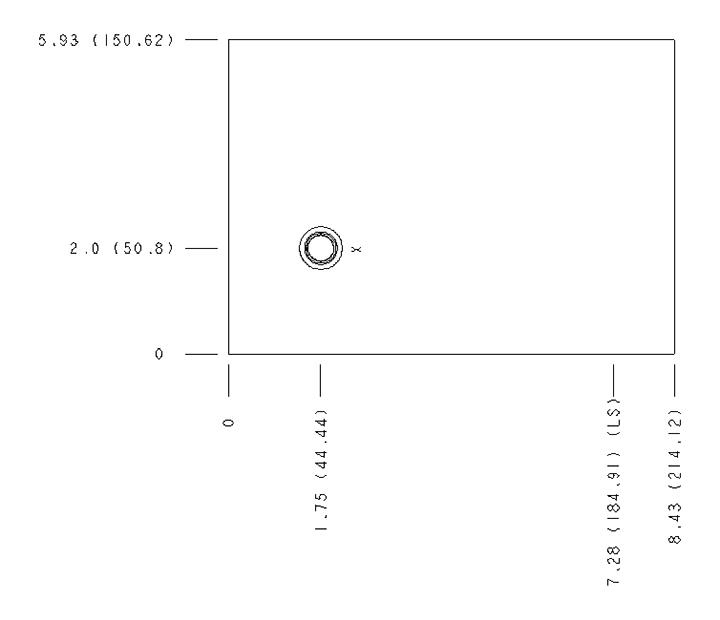

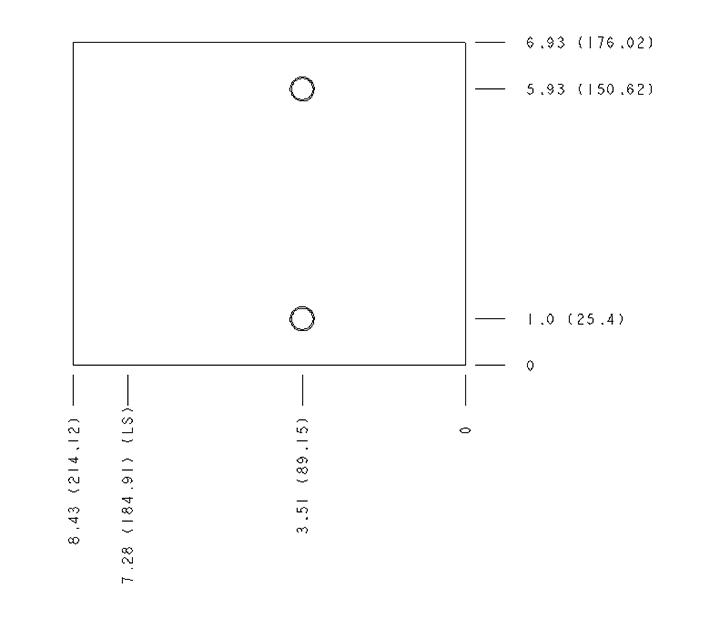

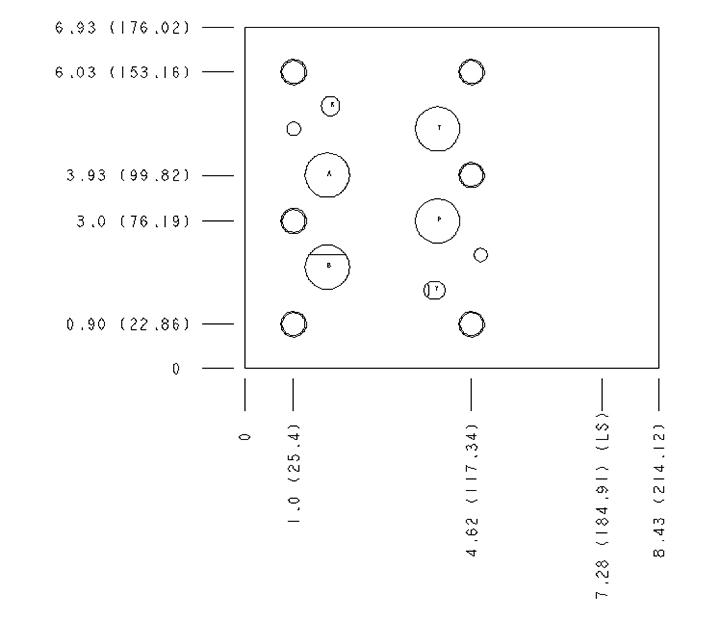

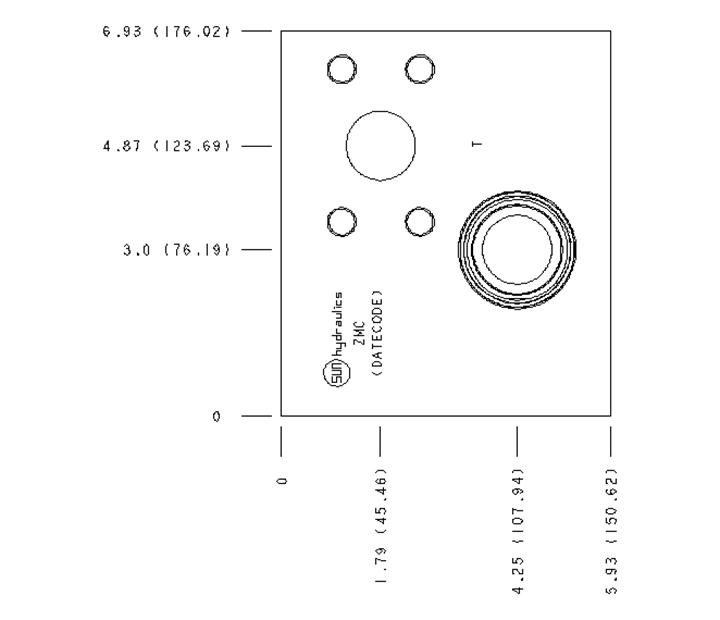

Face
Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T
Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T Hydraulic Manifold - Pressure Reducing, On P, Port 3 to T
